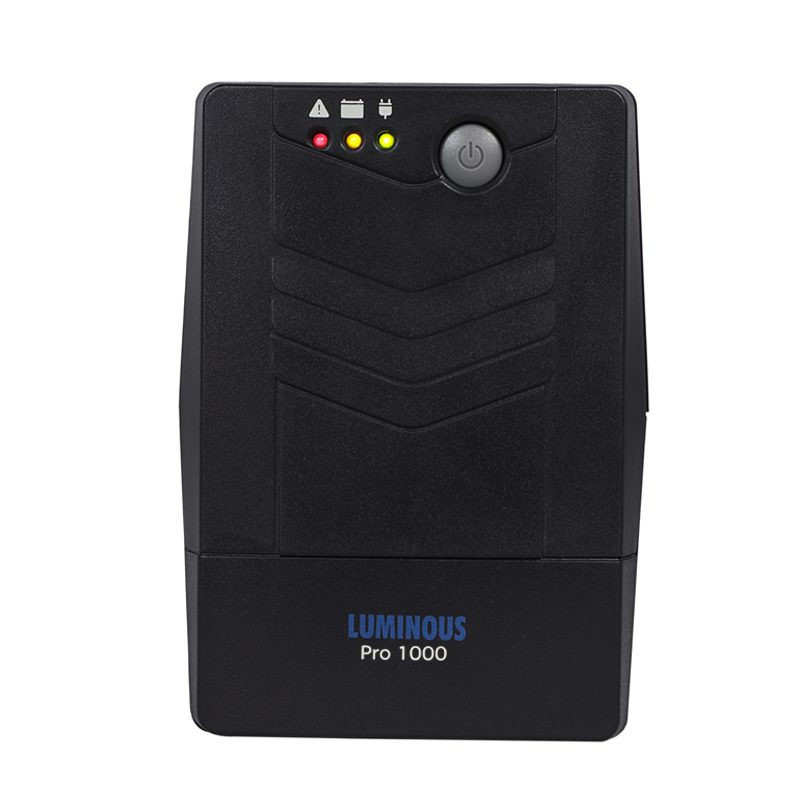

LUMINOUS LB1000 PRO Desktop UPS

Luminous LB1000PRO - 1000VA / 600 Watts, 24V UPS System

Backup: 1 Desktop = 45 Minutes

An Ideal Power Protection for Home Office, Electronics. delivers continuous power supply and protects your computer and peripherals from power surges, drop in line voltage, brownouts, Blackouts and other critical hazards.

Smart Charging and Intelligent Continuous Charging Technology ensure longer battery life and faster charging. At Luminous the Onus is to Empower you to protect your data and Enable you to keep working without any hassle during unscheduled power outages

APPLICATION:
?Small Home & Offices
?Digital Classroom Equipment
?LED TV & Set-Top Box
?Router/Modem
?CCTV Surveillance
?Cyber Hub
?Desktop/PC Backup Support

MODEL	LB1000PRO
CAPACITY	1000VA / 600Watts
INPUT
Voltage	230 VAC
Voltage Range	140-300 VAC
Nominal Voltage	50 Hz (Auto Sensing)
OUTPUT
Voltage Regulation	230V +/- 10%
Frequency Range (Battery Mode)	50-60 Hz +/- 1 Hz
Transfer Time	Typical 4-8 ms , 13ms Max
Waveform	Simulated Sine Wave
BATTERY
Type & Number	24 V / 7.5Ah x 2 No.
Charging Time	4-6 Hours Upto 90% Capacity
EFFICIENCY	94%
Display- Indicator
Ac Mode	Solid Green LED
Battery Mode	Flashing Yellow LED
Fault Mode	Solid Red LED
PHYSICAL
Dimensions ? DxWxH(mm)	350 x 146 x 160
Net Weight (kgs)	7.9 Kgs
ENVIRONMENT
Operating Humidity	0-90 % RH @ 0-40 C (Non condensing)
Noise Level	Less than 40dB
WARRANTY
Electronics	2 Years
Battery	2 Years
